Low-Smoke Halogen-Free Electrical Conduit Coupling

Home > LSZH Conduit and Fittings > Low Smoke Halogen-Free Electrical Conduit Sweep Bend

Low Smoke Halogen-Free Electrical Conduit Coupling

Quality Certification:

– Australian Standard

– Conforms to AS/NZS 2053, RoHS, REACH, CE, SGS, ISO

What Are Low-Smoke Halogen-Free Materials and Why Important?

Low-Smoke Halogen-Free (LSHF/LSZH) materials are specially engineered compounds designed to minimize the amount of smoke and toxic gases emitted when exposed to fire or high heat. These materials are free from halogens, which include chlorine, fluorine, bromine, and iodine, commonly found in traditional PVC or other polymer-based products. LSHF materials are often used in applications where safety, particularly in the event of a fire, is critical.

What is

Low-Smoke Halogen-Free Conduit Coupling?

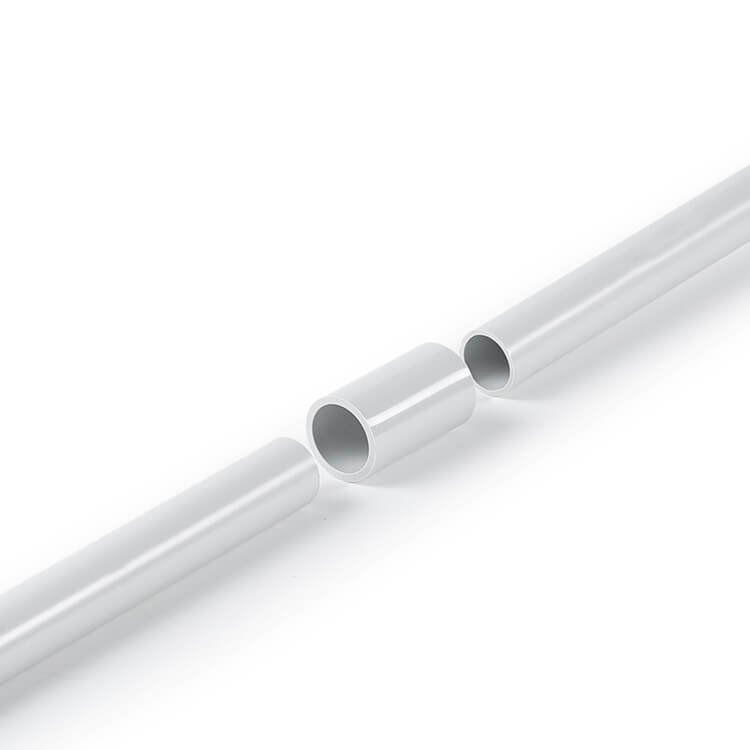

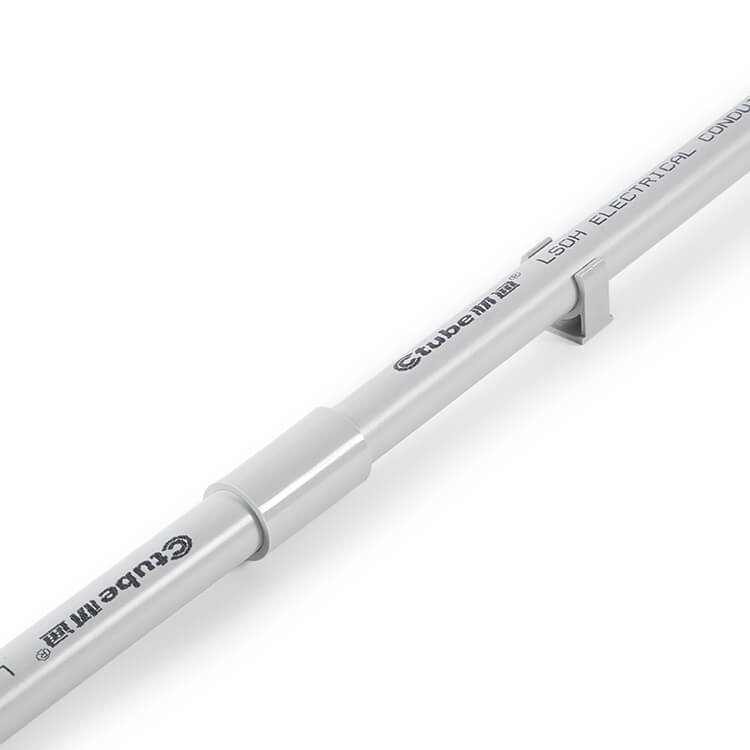

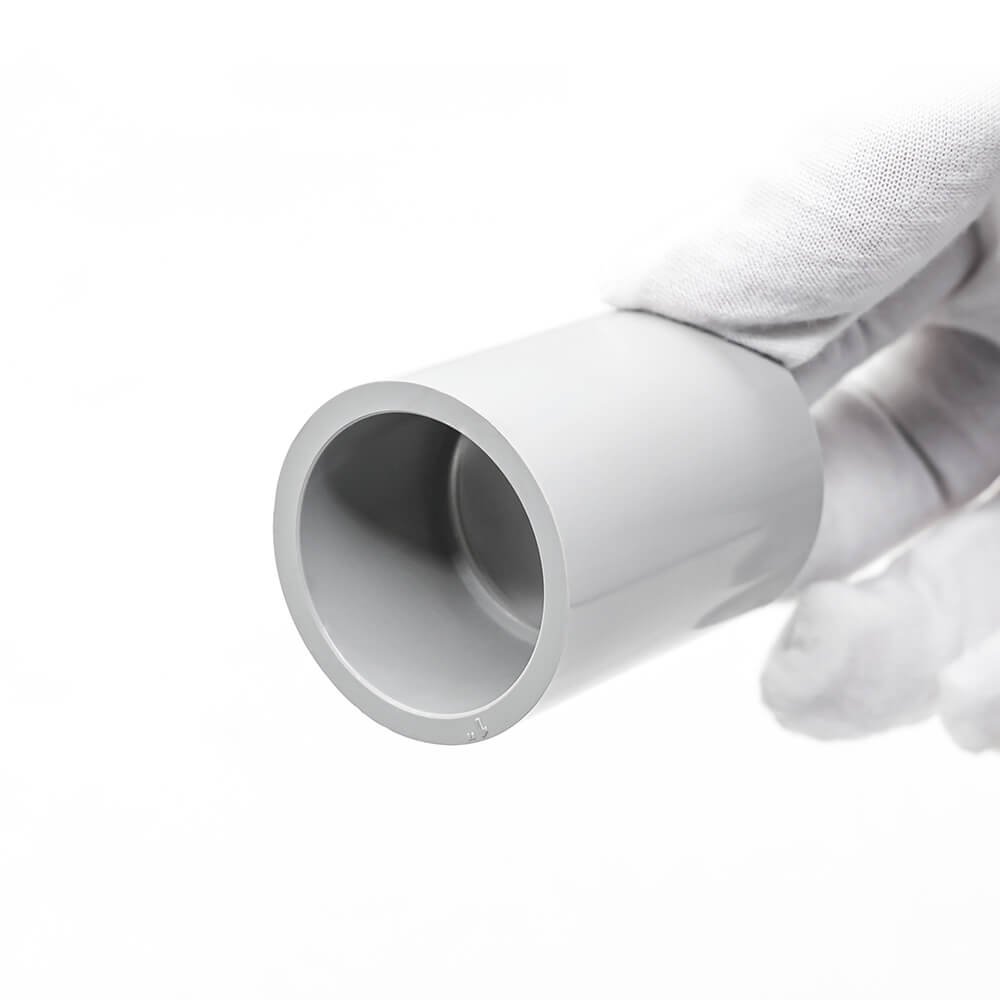

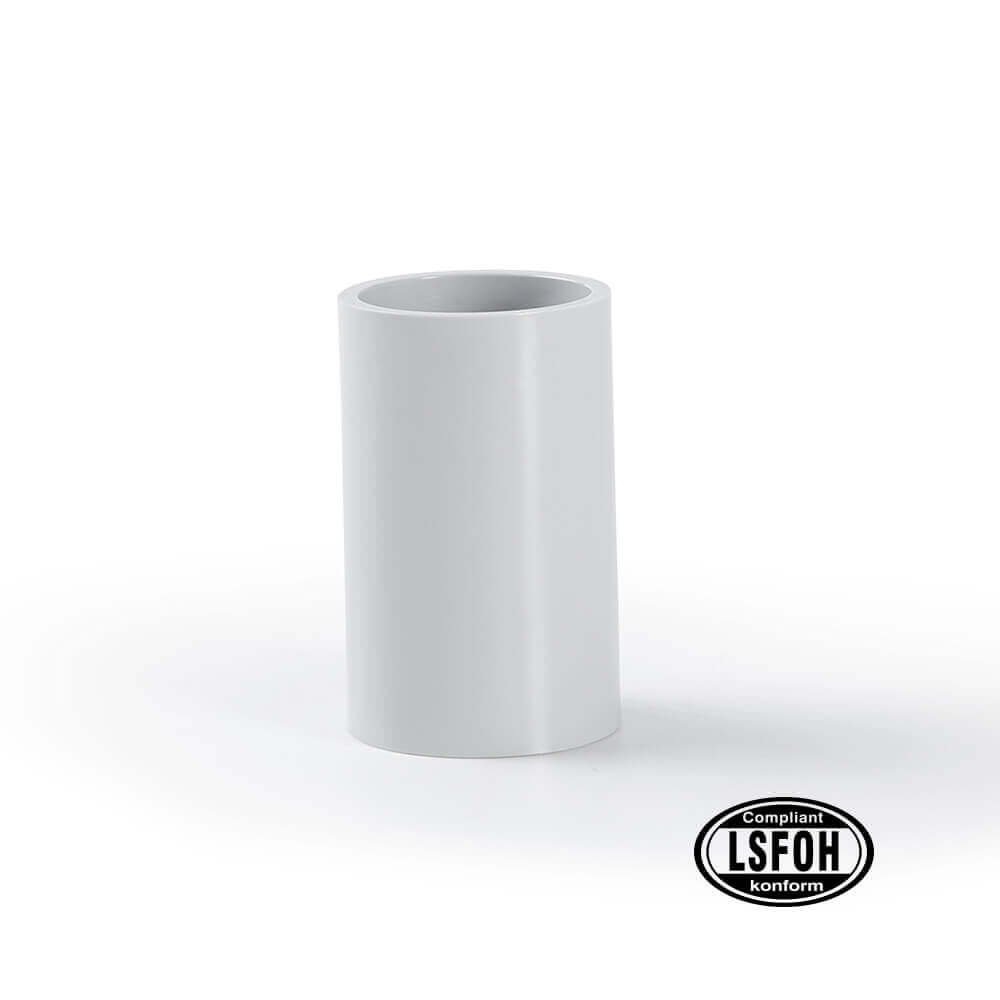

A Low Smoke Halogen-Free (LSHF) Coupling is a specialized fitting used to join two sections of electrical conduit, designed to offer enhanced safety in the event of a fire.
Unlike traditional couplings, which may release toxic halogen gases and thick smoke when exposed to heat or flame.
These couplings are ideal for installations in environments where safety and environmental concerns are a priority, such as in public buildings, tunnels, and other critical infrastructure.
LSHF couplings offer the benefits of both superior fire resistance and minimal environmental impact, making them an excellent choice for modern electrical installations that require high safety standards.

Video to learn more

Features of

Low-Smoke Halogen-Free Conduit Coupling

UV Resistance for Outdoor Applications

Built to withstand outdoor conditions, these couplings are UV-resistant. This feature ensures that they maintain their strength and durability even under prolonged exposure to sunlight, making them ideal for use in outdoor electrical installations or areas with harsh environmental conditions.

High Impact Resistance for Reliable Performance

The conduit coupling is engineered to resist physical impact and external pressures, ensuring that it remains intact and securely fastened to the conduit. This high-impact resistance protects the system from accidental damage, ensuring long-term stability, even in environments prone to vibrations or mechanical stress.

Easy Installation for Quick Setup

These couplings are designed for fast and hassle-free installation, which helps to reduce overall installation time and labor costs. The user-friendly design ensures a tight, secure fit with minimal effort, making it an ideal solution for both professional electricians

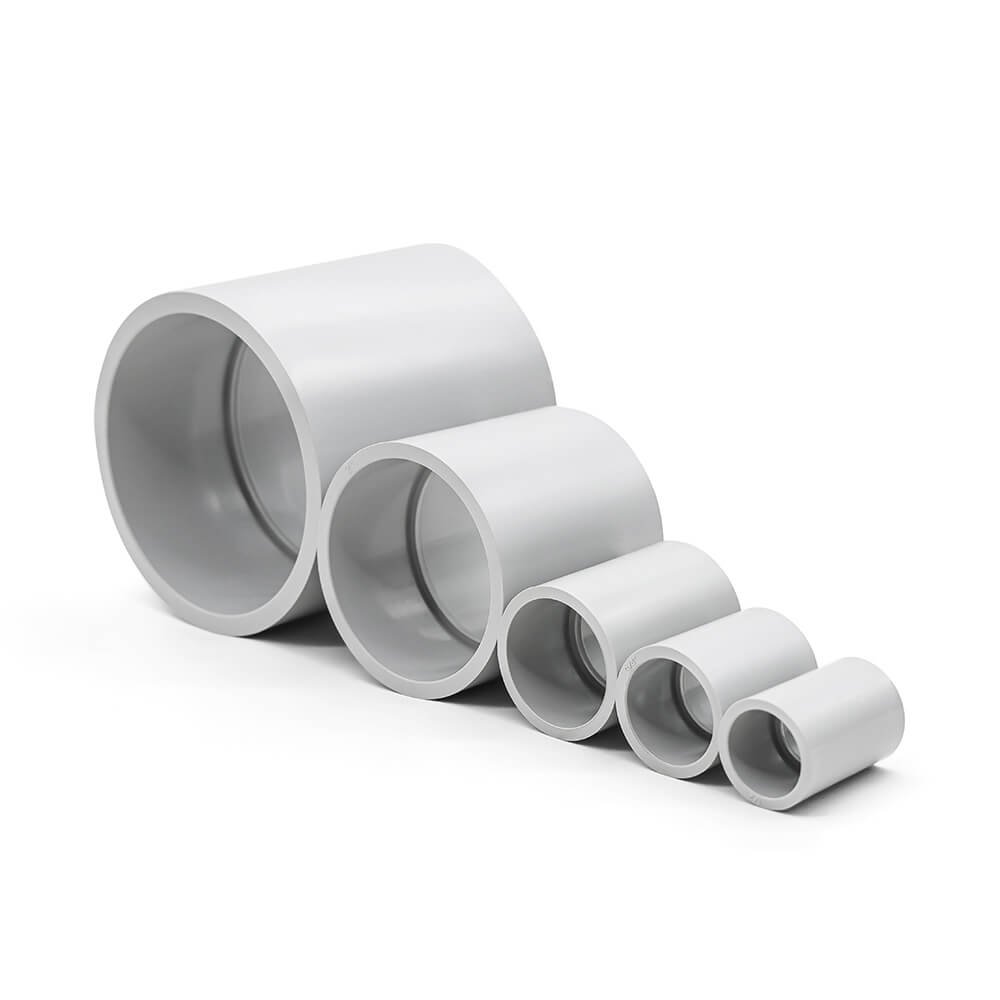

Wide Range of Sizes for Versatile Applications

Available in a range of sizes, the conduit coupling is designed to fit various conduit diameters, offering flexibility for different applications. Whether it's for residential, commercial, or industrial projects, the coupling ensures a tight and secure connection for all conduit types.

Properties

Brand:	Ctube	OEM:	Available
Material:	LSZH	Length:	Customized
Thickness:	Customized	OD Range:	16-63mm
Certification:	RoHS, CE, SGS, ISO	Color:	Gray or customized
Fire Resistance:	V0	UV Resistance:	Yes
Conductivity:	Insulated	Hardness:	Rigid & impact-resistant
Packing:	Plastic bags & PE films	Sample:	Free
Country:	China	Factory:	Dongguan, Guangdong

Size Chart

Product Code	Nominal Size	O.D.	I.D.	Outer Packing
CT-HF20C	20mm	23.5mm	20.0mm	1000 units/carton
CT-HF25C	25mm	28.5mm	25.0mm	720 units/carton
CT-HF32C	32mm	37.0mm	32.0mm	360 units/carton
CT-HF40C	40mm	44.5mm	40.0mm	210 units/carton
CT-HF50C	50mm	55.6mm	50.0mm	120 units/carton
