1. Introduction

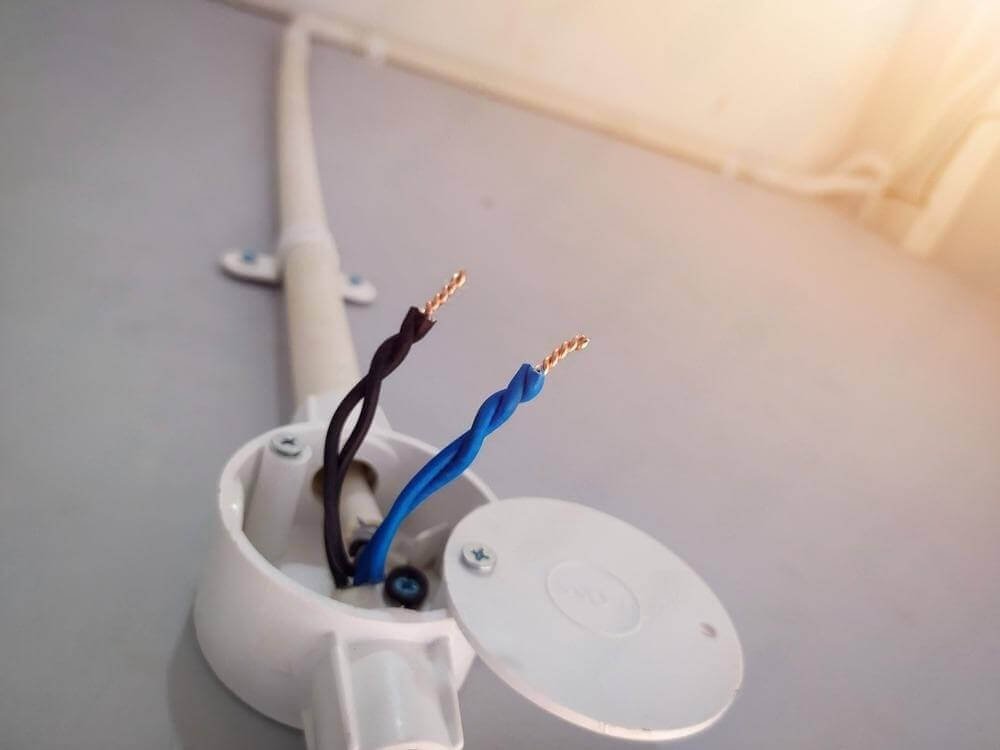

In any electrical wiring system, conduit fittings play a vital role in organizing, protecting, and connecting conduit runs. Among these fittings, the PVC junction box stands out as an essential component for housing and safeguarding wire connections.
Whether youโre an electrical contractor, project manager, or simply someone exploring quality electrical components for residential or commercial installations, understanding the role of a PVC junction box is essential. These small but critical components help protect wiring connections, maintain system integrity, and ensure long-term electrical safety.
In Australia and New Zealand, the AS/NZS 2053 standard defines the performance and safety requirements for conduit systems. This standard ensures that each product is built to withstand environmental stress, mechanical force, and fire risk.
This article will walk you through everything you need to know about AS/NZS 2053 PVC junction boxesโfrom their functions and features to sizing, applications, installation tips, and how to ensure youโre using certified products for safer, more reliable electrical systems.
2. Overview of the AS/NZS 2053 Standard
The AS/NZS 2053 standard is a joint Australian/New Zealand specification that defines the performance and safety requirements for non-metallic conduit systems, including rigid and flexible PVC conduits and fittings. It plays a key role in ensuring that electrical installations are reliable, compliant, and safe for long-term use in residential, commercial, and industrial environments.
The AS/NZS 2053 series consists of multiple parts, each focusing on a specific aspect of conduit systems.
- Material requirements (e.g., PVC compounds must meet thermal and mechanical strength criteria)
- Dimensions and tolerances for conduits and fittings
- Resistance to flame propagation, impact, and crushing
- Electrical insulation performance under dry and wet conditions
- Ingress protection (IP rating) for junction boxes
While the AS/NZS 2053 standard does not explicitly require UV resistance testing, for projects requiring long-term outdoor durability, users should verify whether the manufacturer offers UV-stabilized products or additional test certifications beyond AS/NZS 2053, such as third-party weathering tests.
Note: While the AS/NZS 2053 standard itself does not directly define ingress protection (IP) ratings, PVC junction boxes intended for outdoor or wet area installations may need to comply with additional standards such as AS 60529, which defines IP ratings (e.g., IP65, IP66). This ensures proper protection against dust and water penetration when required by the application.
Junction boxes come in different materials, like metal and non-metal. In this post, we focus mainly on non-metal PVC junction boxes.
3. Key Features of AS/NZS 2053 Certified PVC Junction Boxes
When choosing PVC junction boxes for your electrical installation, itโs not just about getting the job doneโitโs about doing it safely, efficiently, and with long-term reliability in mind.
๐Letโs walk through some of the key features you can expect from junction boxes that meet the AS/NZS 2053 standard.
3.1 Material Strength and Insulation
AS/NZS 2053 certified junction boxes are made from insulating materials that provide excellent resistance to electric current, ensuring safe containment of wiring connections.
They are also tested for:
- Impact resistance
- Deformation under heat
- Resistance to chemical exposure
This ensures long-term stability in harsh or variable environments.
3.2 Flame Retardant Properties
To reduce fire risks, certified boxes must be non-flame propagating under standard testing conditions. This feature is especially important in areas where fire safety is a regulatory requirement, such as public buildings or underground installations.

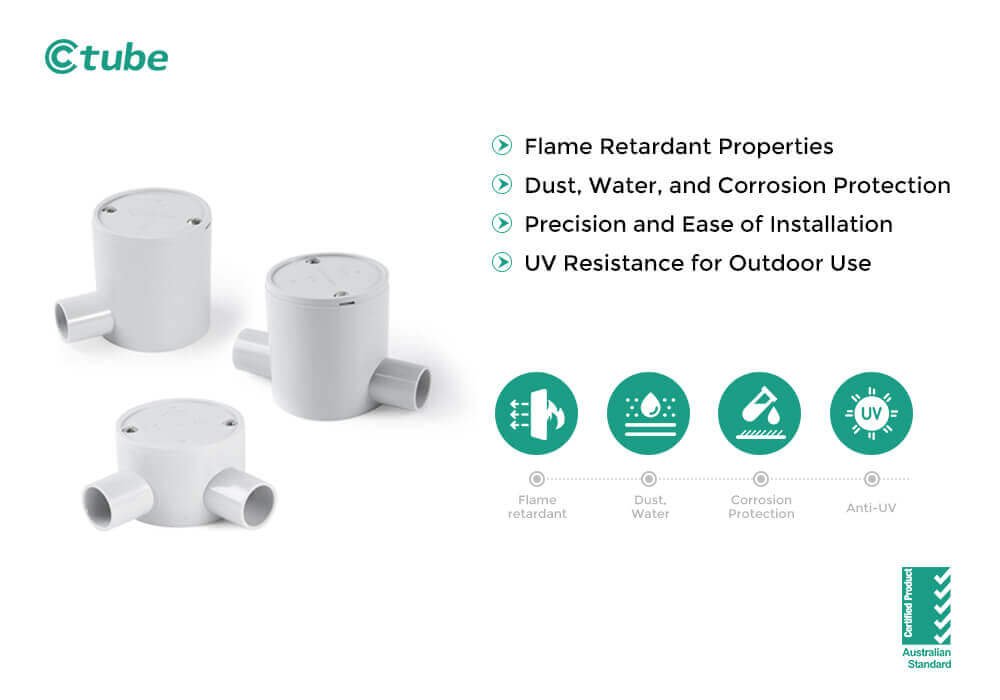

For example, Ctube junction boxes meet the V0 fire rating, which means they are self-extinguishing and do not spread flames. This offers an extra layer of protection and peace of mind in high-risk environments.
3.3 Dust, Water, and Corrosion Protection
In many electrical installationsโespecially outdoors, in bathrooms, kitchens, or industrial spacesโdust and water protection isnโt just nice to have, itโs a must. Thatโs where PVC junction boxes come in handy.
๐ง๏ธ๐ก๏ธPVC junction boxes are often built to meet IP65 or IP66 protection levels when properly sealed. This means they can:
- Block dust from entering the box, which helps prevent short circuits and keeps your wiring clean.
- Resist water from splashes, rain, or even direct sprayโgreat for outdoor or wet-area installations.
๐But thereโs more. Thanks to the natural properties of PVC material, these junction boxes also provide excellent corrosion resistance. Unlike metal boxes that might rust over time, PVC doesnโt corrode, even in coastal, chemical, or humid environments.
3.4 Precision and Ease of Installation
๐ค Ever tried fitting a conduit into a box that just wouldnโt line up?
Certified junction boxes avoid that headache by meeting exact size tolerances for things like wall thickness, outer diameter, and socket depth.
Well-designed junction boxes speed up the installation process and help reduce errors.

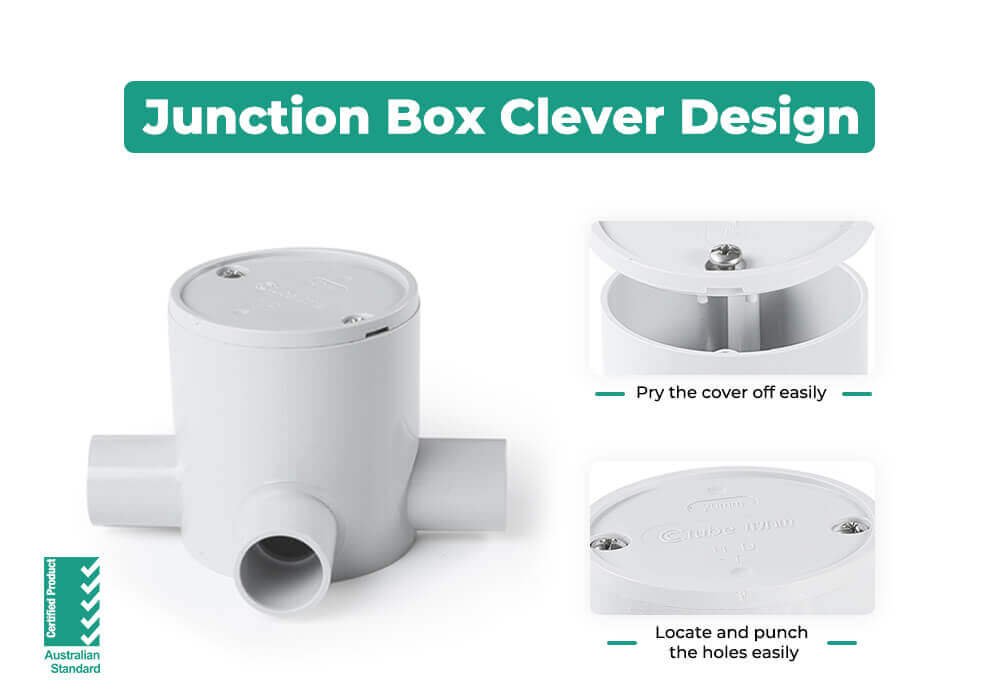

For example, Ctube has introduced thoughtful design improvements, such as a small gap along the lid edge that makes it easier to open with a screwdriverโthis saves time during both installation and inspection.
Additionally, a small groove on the lid allows installers to locate and punch entry holes more easily, improving accuracy and cutting down on measuring and adjustment time.
3.5 UV Resistance for Outdoor Use
While UV resistance is not explicitly required under AS/NZS 2053, it remains an important performance factor for outdoor installations.
Ctubeโs PVC junction boxes are made with UV-resistant materials, ensuring that they resist discoloration, brittleness, and cracking even after prolonged sun exposure.
This added protection is essential for installations exposed to direct sunlight, such as external walls or rooftops.
3.6 Versatile Shapes and Configurations

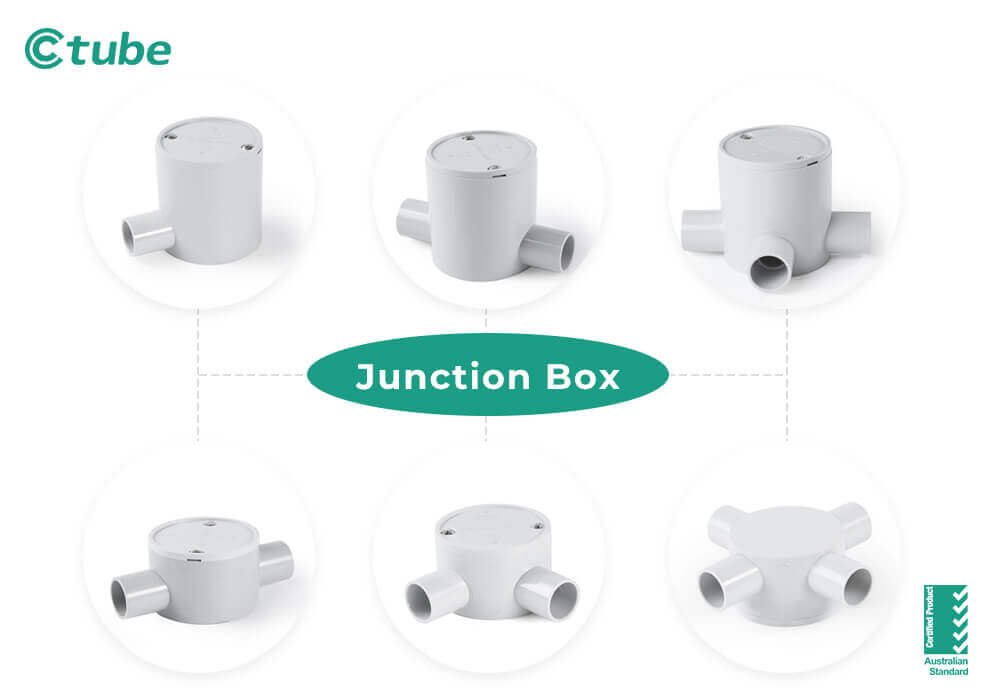

AS/NZS 2053 certified PVC junction boxes come in various shapes and sizes to support different wiring layouts. Common configurations include 1-way, 2-way, right-angle, 3-way, 4-way, U-way, H-way, and Y-way designs with Shallow and Deep types.
These options allow conductors to branch out or change direction easily, adapting to the layout of the building or site.
This versatility is especially helpful in complex installations where space constraints or structural elements require flexible routing. For example, Ctubeโs PVC junction boxes are available in multiple way configurations, offering installers a reliable solution no matter the project scope.
4. How to Install a PVC Junction Box
4.1 What Youโll Need
- PVC junction box
- Compatible PVC conduits
- Conduit fittings (e.g., elbows, couplings, adapters)
- Solvent cement (for bonding conduits and fittings)
- Screwdriver
- Marker or pencil
- Drill (if mounting on wall or ceiling)
4.2 Step-by-Step Installation

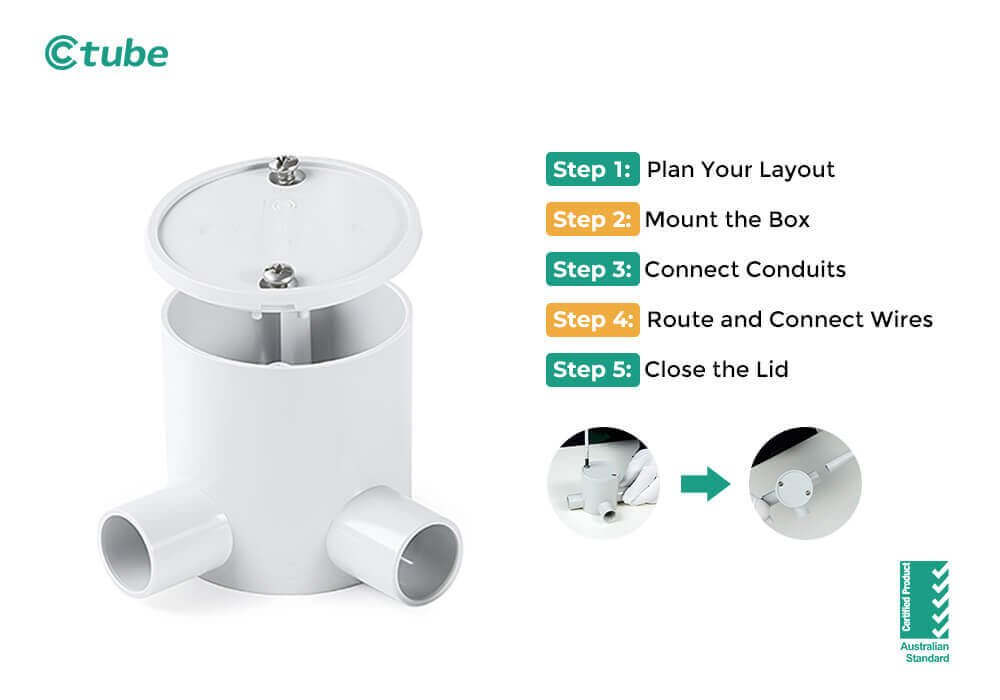

Step 1: Plan Your Layout
Decide where the junction box should go. Make sure itโs easily accessible for future inspection or maintenance. Mark the mounting position.
Step 2: Mount the Box
Secure the box to the wall, ceiling, or desired surface using screws. Most PVC junction boxes (like Ctubeโs) come with pre-drilled mounting holes for convenience.
Step 3: Connect Conduits
Use a hacksaw or conduit cutter to trim the PVC conduits to the right length. Deburr the edges for a smooth fit.
Apply PVC solvent cement to the ends of the conduit and the junction box socket. Push them together and hold for a few seconds until the cement sets.
โ Tip: Make sure the conduit is fully inserted for a tight seal.
Step 4: Route and Connect Wires
Once all conduit connections are done, pull your wires through the box and conduits. Leave enough slack in the box to allow for easy wiring and inspection.
Step 5: Close the Lid
After wiring is complete, place the lid on the junction box. Ctubeโs box design includes a gap for screwdriver accessโmaking it easier to open and close. Tighten screws securely to ensure dust and water resistance.
5. How to Identify Genuine AS/NZS 2053 Junction Boxes
5.1 Look for Certification Marks
Check the packaging or the product itself for official certification symbols. These marks show that the junction box has been tested and approved to meet the required standards. If you see the AS/NZS 2053 code clearly printed, thatโs a good sign!
5.2 Check the Manufacturerโs Certifications
A reliable manufacturer should be able to provide you with certification documentsโlike those issued recognized testing organizations. If youโre unsure, donโt hesitate to ask the supplier for proof.
5.3 Buy from Trusted Brands and Suppliers
Stick with well-known brands or companies that have a good reputation. Trusted suppliers are more likely to sell certified and high-quality products that meet safety standards.
๐ก For example, Ctube offers certified junction boxes that meet the AS/NZS 2053 requirementsโensuring both quality and peace of mind.
6. Conclusion
PVC junction boxes may seem like small components, but they play a big role in keeping your electrical systems safe, organized, and long-lasting.
From understanding the AS/NZS 2053 standard to recognizing key features like flame resistance, dust and water protection, and proper installationโbeing informed helps you make better decisions on-site.
๐ If youโre interested in learning more about the electrical conduit requirements in the AS/NZS 2053 standard, check out our article Understanding the AS/NZS 2053 Standard: A Comprehensive Guide for Electrical Conduits.
๐ If youโre curious about orange electrical conduit, donโt miss Everything You Should Know About Orange Electrical Conduit.
๐ข A video for you to learn more about Ctube Junction Box.
When youโre looking for trusted, certified, and durable solutions, Ctube has you covered. Our AS/NZS 2053-compliant conduit and junction boxes are designed for real-world conditionsโoffering V0 flame rating, UV resistance, easy installation, and a variety of configurations to meet different wiring needs.
Whether youโre working on a residential project or a large commercial system, Ctube products make the job easier, safer, and more efficient.
๐ Make every connection countโchoose Ctube for quality you can rely on.
๐ฉ Contact us today for a quote or more information about our products!
