AS/NZS 2053 Split PVC Electrical Conduit Pipe Black

AS/NZS 2053 Split Corrugated PVC Electrical Conduit Pipe Black

Quality Certification:

– Australian Standard

– Conforms to AS/NZS 2053, RoHS, REACH, CE, SGS, ISO

about Flexible Conduit

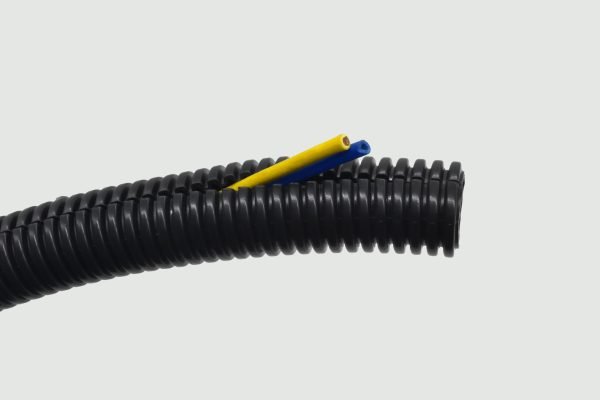

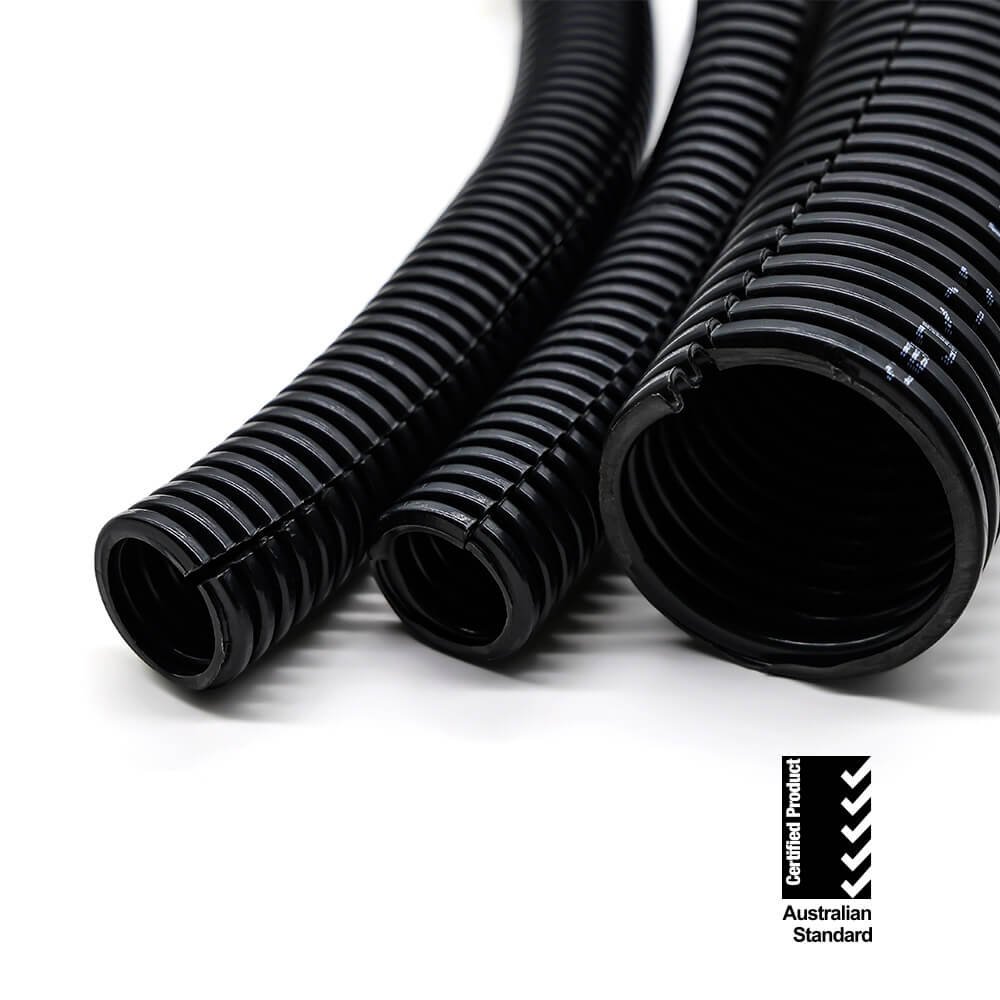

What are Split Flexible Conduits?

Split flexible conduits are protective conduits designed with a longitudinal split, allowing them to be easily opened and closed along their length. This feature provides convenient access to the electrical wires inside, making installation, maintenance, and modifications faster and more efficient.

Why Choose Split Flexible Conduits?

Split flexible conduits are ideal for environments where wiring needs to be frequently accessed, adjusted, or updated. This design ensures minimal disruption and allows for quick adjustments.

Benefits of Using Split Flexible Conduits

Despite being split, these conduits maintain excellent protection against physical damage, moisture, and environmental factors, keeping the wiring safe and secure throughout their lifespan.

Send Inquiry

Features

Wide Temperature Range

It operates effectively in temperatures from -15°C to +105°C, making it suitable for diverse climates.

UV Stabilized & Aging Resistance

It is resistant to ultraviolet (UV) light, making it ideal for outdoor installations.

Electrical Insulation

It has built-in electrical insulation properties for safe use in electrical systems.

Waterproof and Ingress Protection

The conduit provides a high level of protection against water and dust ingress, ensuring safe operation in harsh conditions.

Advantages

V0 Fire Rating

Oue conduit will self-extinguish within five seconds after the ignition source is removed, without dripping flaming particles. This ensures enhanced fire safety, making it minimize fire risks.

Compression Resistance

Our conduit is designed to have excellent compression resistance, meaning it can withstand pressure without deforming or losing its shape.

Properties

Brand:	Ctube	OEM:	Available
Material:	PVC	Length:	AU Standard
Thickness:	AU Standard	OD Range:	16-150mm
Certification:	AS/NZS, RoHS, REACH, CE, SGS, ISO	Color:	Black
Fire Resistance:	V0	UV Resistance:	Yes
Conductivity:	Insulated	Hardness:	Rigid & impact-resistant
Packing:	Plastic bags & PE films	Sample:	Free
Country:	China	Factory:	Dongguan, Guangdong

Size Chart

Product Code	Nominal Size	Length	Weight
CT-HDCCOR2010	20mm	10m	100g/m
CT-HDCCOR2025	20mm	25m	100g/m
CT-HDCCOR2050	20mm	50m	100g/m
CT-HDCCOR2510	25mm	10m	150g/m
CT-HDCCOR2525	25mm	25m	150g/m
CT-HDCCOR2550	25mm	50m	150g/m
CT-HDCCOR3210	32mm	10m	220g/m
CT-HDCCOR3225	32mm	25m	220g/m
CT-HDCCOR4010	40mm	10m	230g/m
CT-HDCCOR4025	40mm	25m	230g/m
CT-HDCCOR5010	50mm	10m	320g/m
CT-HDCCOR5025	50mm	25m	320g/m

FAQ

1.What is your MOQ ?
Depend on your order (different kinds of items have different MOQ )

2. What is your delivery time ?
Normally, the time of delivery duration is around 15-30 days.

3. What is the shipping port ?
We ship the goods via Shenzhen Port, Guangzhou Port.

4. What is your payment term ?
We accept T/T or L/C.

5. How should I contact you ?
You can contact us by submit the contact form or send us an email.

6. How about the samples ?

Our samples are free . We could send you the sample, most samples are free to send to most place

We Provide

Customization Solution

We provide customized solutions tailored to your specific needs, whether you’re managing a large-scale installation or sourcing materials for distribution.

For engineers, we offer bespoke conduit options that ensure optimal performance and compliance with project specifications, from tailored conduit sizes to unique material formulations that enhance durability and efficiency.

For distributors, we offer flexible ordering options and support to ensure that you can meet your clients’ demands swiftly and reliably. Whatever your role, our focus is on delivering high-quality, tailored products and exceptional service every step of the way.
