AS/NZS 2053 Solar Conduit Connector Sweep Bend

Home > Solar Conduit and Fittings > AS/NZS 2053 Solar Conduit Conduit Elbow Connector

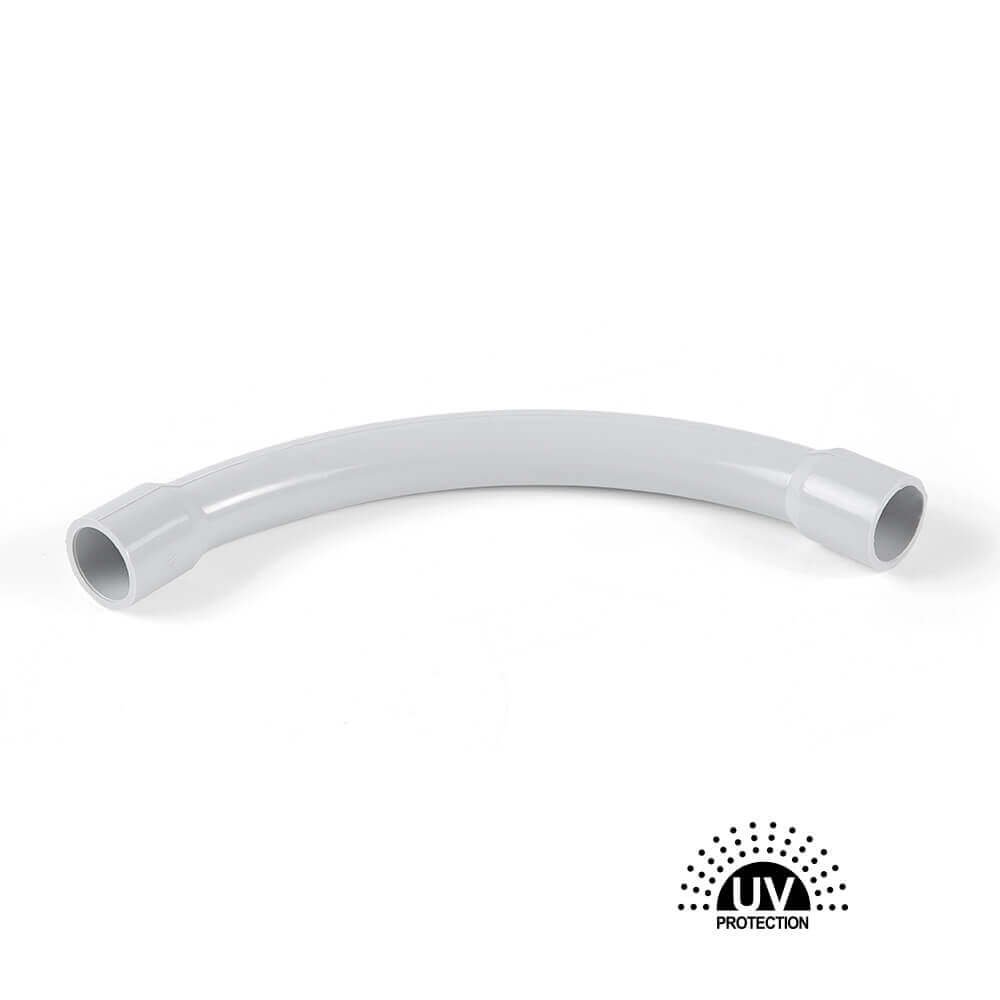

AS/NZS 2053 Solar Conduit Conduit Elbow Connector

Quality Certification:

– Australian Standard

– Conforms to AS/NZS 2053, RoHS, REACH, CE, SGS, ISO

Why Choose the Solar Series?

The Solar Series is specifically designed to withstand prolonged exposure to sunlight and UV radiation, making it ideal for outdoor solar installations. The materials used in these boxes are treated with advanced UV stabilizers, preventing discoloration, brittleness, and structural degradation caused by prolonged sunlight exposure. This ensures that the box retains its functionality and appearance even after years of outdoor use, offering reliable performance in any climate.

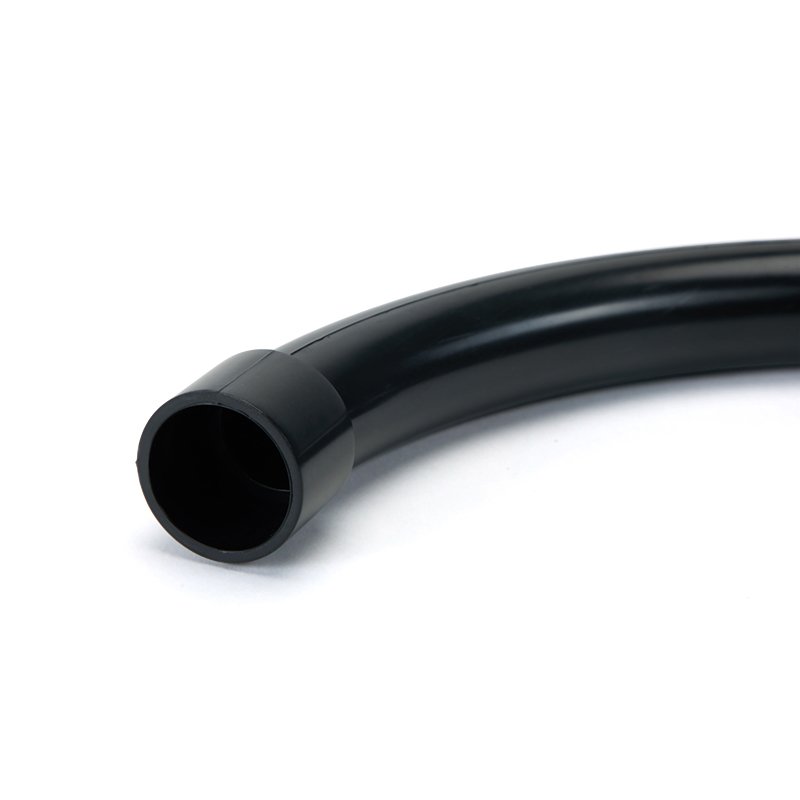

What is a Sweep Bend ?

A sweep bend is a specialized fitting designed to enable gradual directional changes in conduit systems, typically over a wider radius than standard elbow connectors. These fittings guide conduits smoothly around corners, obstacles, or structural elements, minimizing stress on cables and preserving their integrity during transitions. Sweep bends are particularly suited for rigid conduit systems, offering a dependable solution for creating long, flowing bends that enhance cable protection and ease of installation. Unlike elbow connectors that provide sharper turns for space-constrained layouts, sweep bends are ideal for applications requiring reduced cable tension and improved pulling ease, especially in long conduit runs.

Video to learn more

Features of

Solar Conduit Elbow Connector

Gradual Bending Radius

Sweep bends are designed with a wider, gradual bending radius, making them ideal for applications where smooth transitions are essential. This reduces stress on cables during installation and operation, preventing damage and ensuring long-term reliability.

Enhanced Cable Protection

The smooth curve of a sweep bend minimizes friction during cable pulling, reducing the risk of abrasions or kinks. This makes it particularly suitable for installations involving long cable runs or sensitive wiring.

Optimized for Long Conduit Runs

Sweep bends are especially beneficial in lengthy conduit installations, as their design facilitates easier cable pulling over extended distances. This feature helps maintain cable alignment and simplifies the installation process.

Durable and Reliable Construction

Manufactured from robust materials, sweep bends offer high resistance to environmental factors, corrosion, and mechanical wear. Their durability makes them a reliable choice for both indoor and outdoor environments.

Compliance with Standards

Sweep bends meet regulatory and safety standards, ensuring secure and efficient performance. Their design supports professional-grade installations while adhering to industry best practices.

Differentiation from Elbow Connectors

Unlike elbow connectors, which provide sharp angles for space-constrained setups, sweep bends create smooth, gradual curves. This characteristic makes them ideal for scenarios prioritizing cable integrity and ease of pulling, complementing other fittings to provide a complete conduit solution.

Properties

Brand:	Ctube	OEM:	Available
Material:	PVC	Length:	AU Standard
Thickness:	AU Standard	OD Range:	16-50mm
Certification:	AS/NZS, RoHS, REACH, CE, SGS, ISO	Color:	Gray or customized
Fire Resistance:	V0	UV Resistance:	Yes
Conductivity:	Insulated	Hardness:	Rigid & impact-resistant
Packing:	Plastic bags & PE films	Sample:	Free
Country:	China	Factory:	Dongguan, Guangdong

Size Chart

Product Code	Nominal Size	Inner Packing	Outer Packing
CT-STB16	16mm	–	250 boxes/carton
CT-STB20	20mm	–	180 boxes/carton
CT-STB25	25mm	–	135 boxes/carton
CT-STB32	32mm	–	100 boxes/carton
CT-STB40	40mm	–	35 boxes/carton
CT-STB50	50mm	–	28 boxes/carton

FAQ

1.What is your MOQ ?
Depend on your order (different kinds of items have different MOQ )

2. What is your delivery time ?
Normally, the time of delivery duration is around 15-30 days.

3. What is the shipping port ?
We ship the goods via Shenzhen Port, Guangzhou Port.

4. What is your payment term ?
We accept T/T or L/C.

5. How should I contact you ?
You can contact us by submit the contact form or send us an email.

6. How about the samples ?

Our samples are free . We could send you the sample, most samples are free to send to most place

We Provide

Customization Solution

We provide customized solutions tailored to your specific needs, whether you’re managing a large-scale installation or sourcing materials for distribution.

For engineers, we offer bespoke conduit options that ensure optimal performance and compliance with project specifications, from tailored conduit sizes to unique material formulations that enhance durability and efficiency.

For distributors, we offer flexible ordering options and support to ensure that you can meet your clients' demands swiftly and reliably. Whatever your role, our focus is on delivering high-quality, tailored products and exceptional service every step of the way.
